Photos as we have available here and there and while working on the remake of the 1972 Camaro.
These photos will be 2015 and forward. A lot of times it's just busy and I forget to take photos!
PAGE 6
You can click the image for larger view
|
Passenger side view. Completing the last side run wiring
|

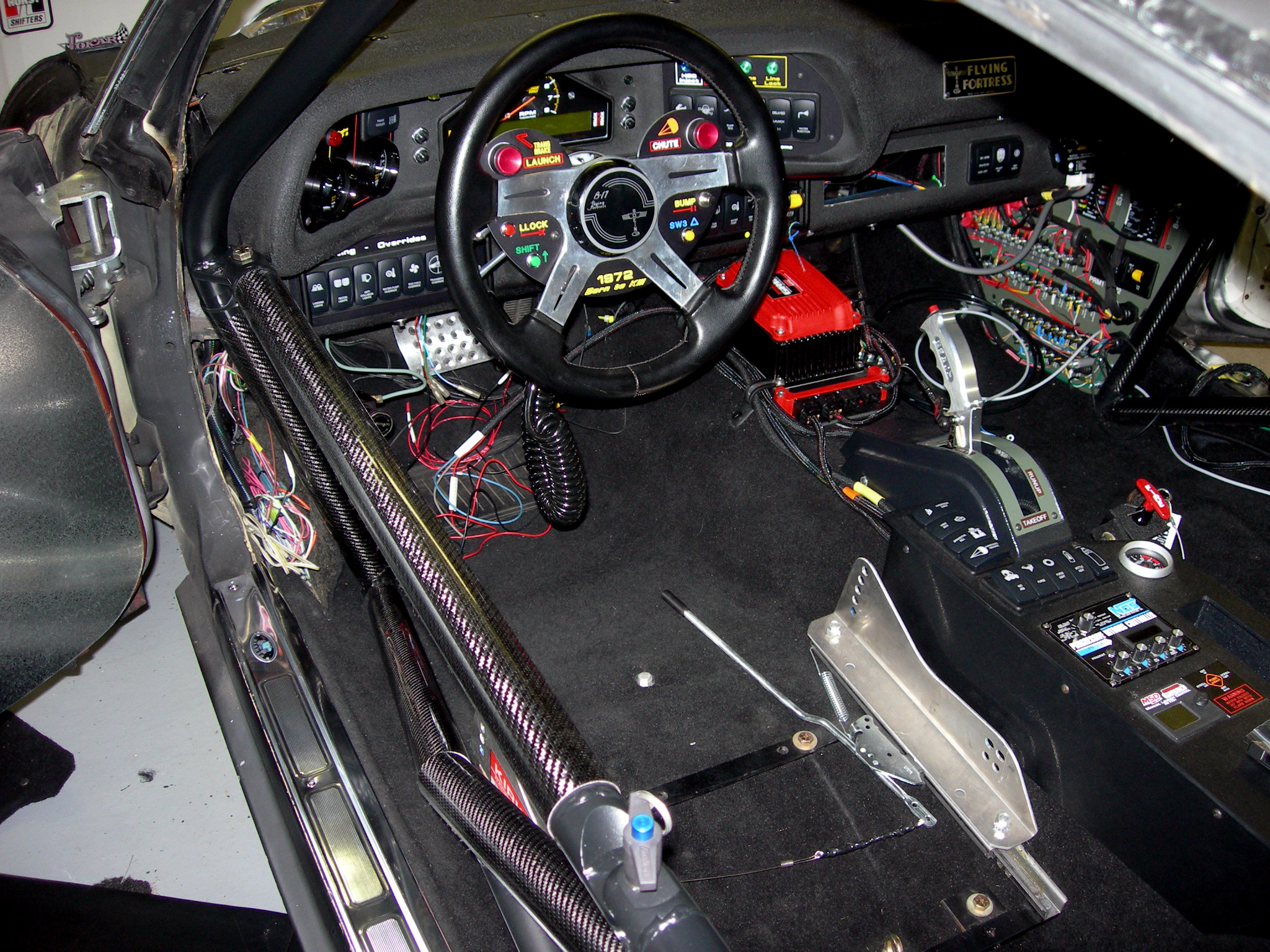

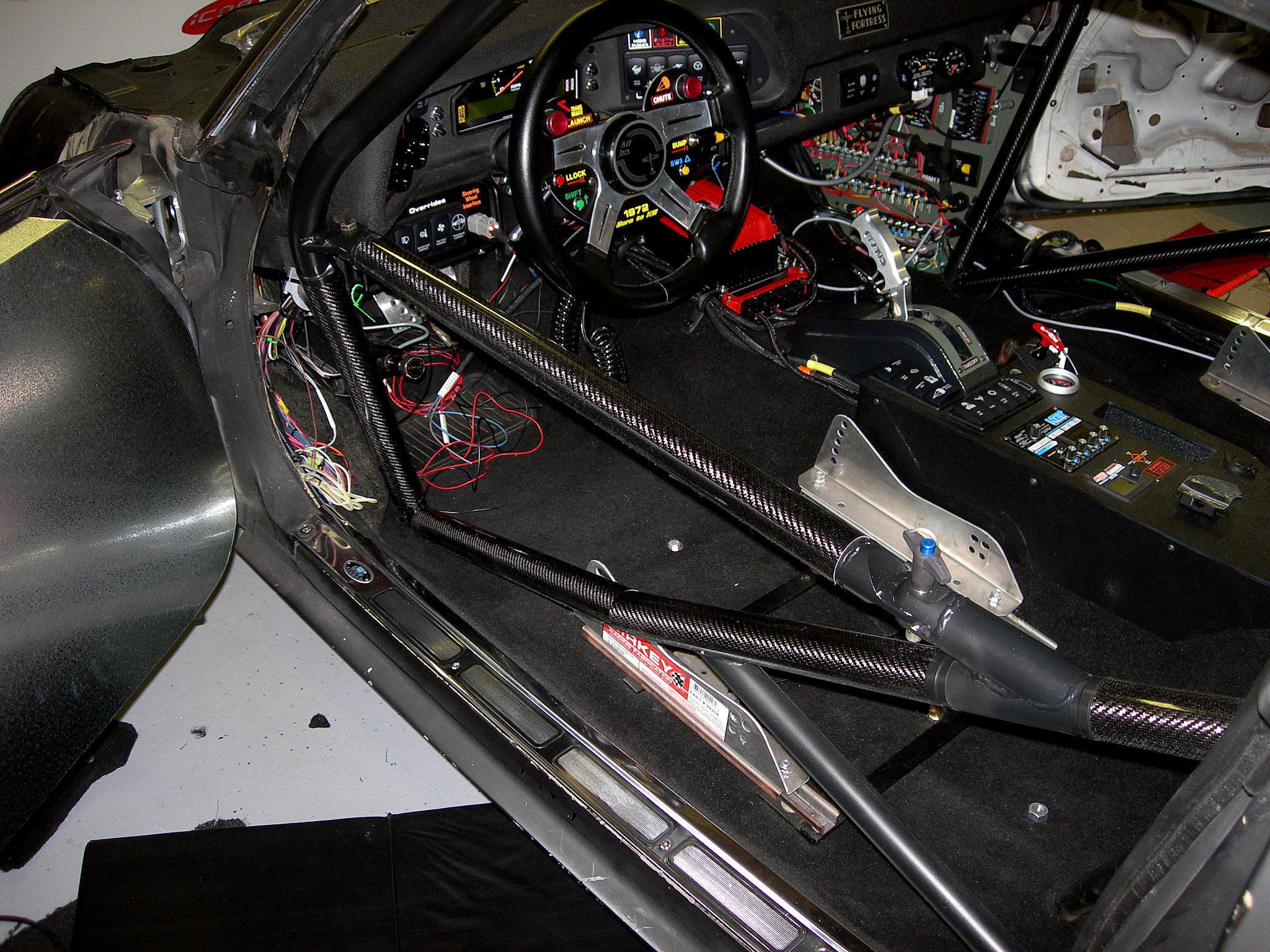

Driver side view, a little wiring left to do. Steering Column installed.
|
Almost ready for seat install!
|
Rear area from driver side
|

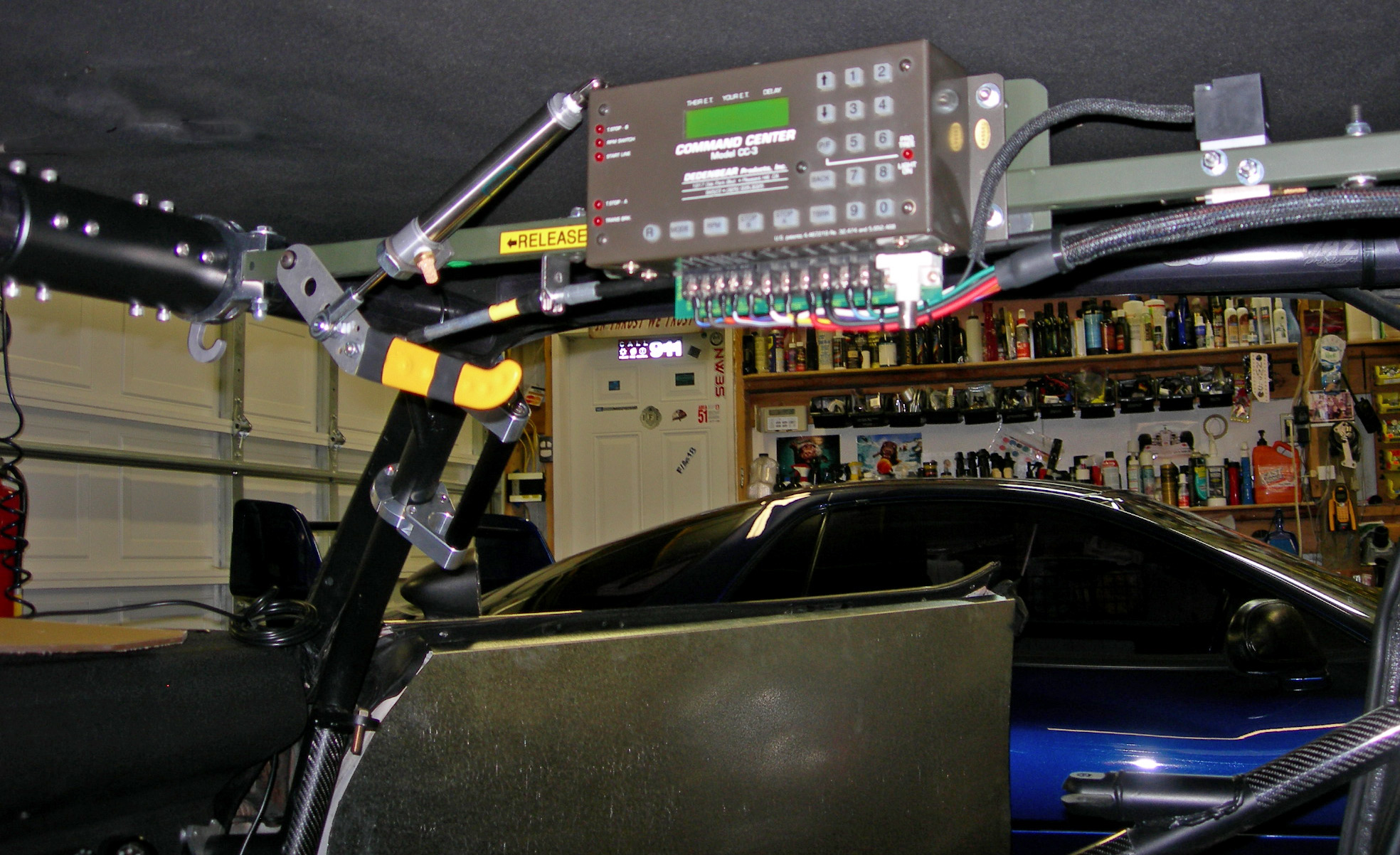

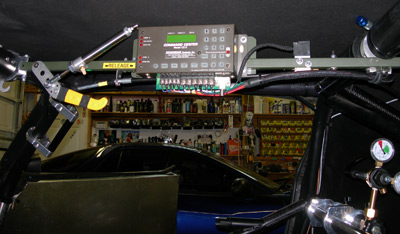

Driver side view - Parachute release system and CC3 Dedenbear Command Center and Delay Box install.
|

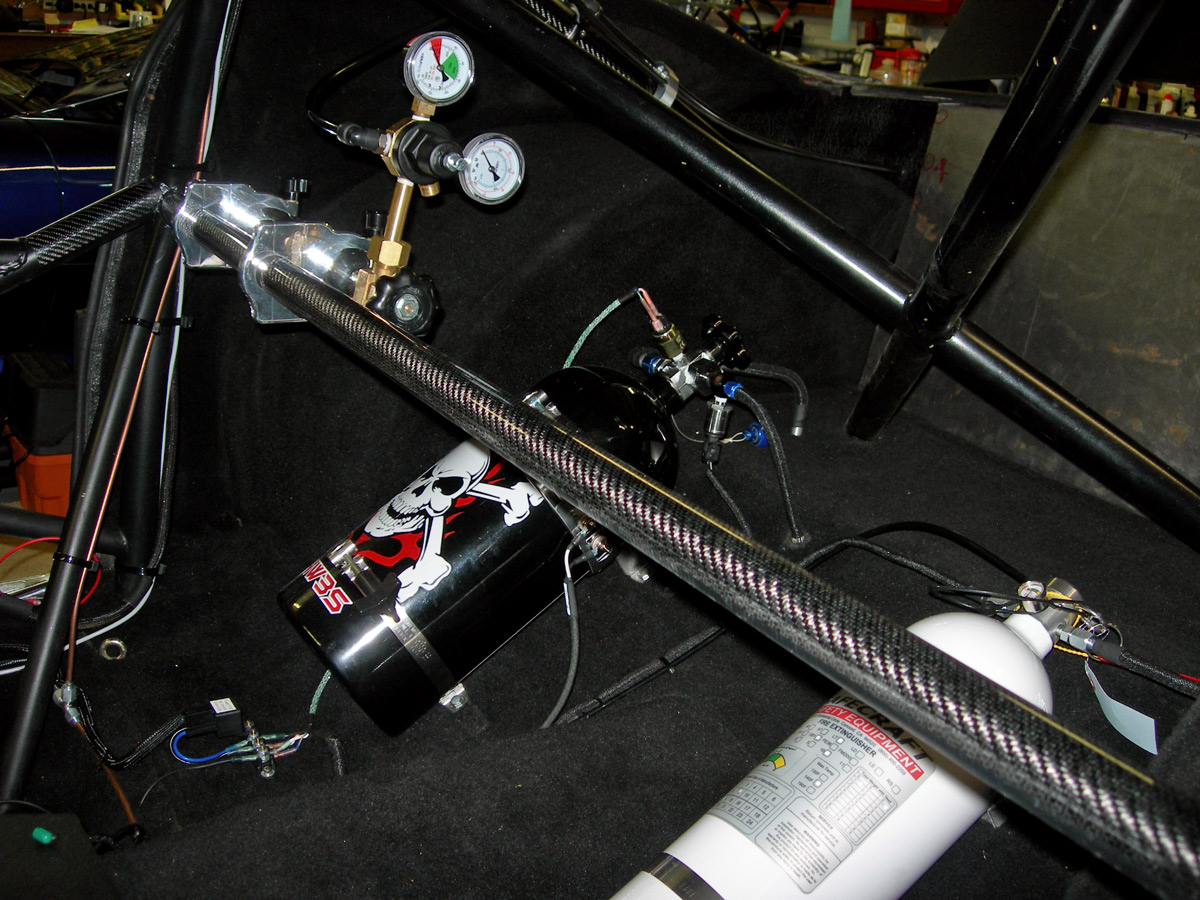

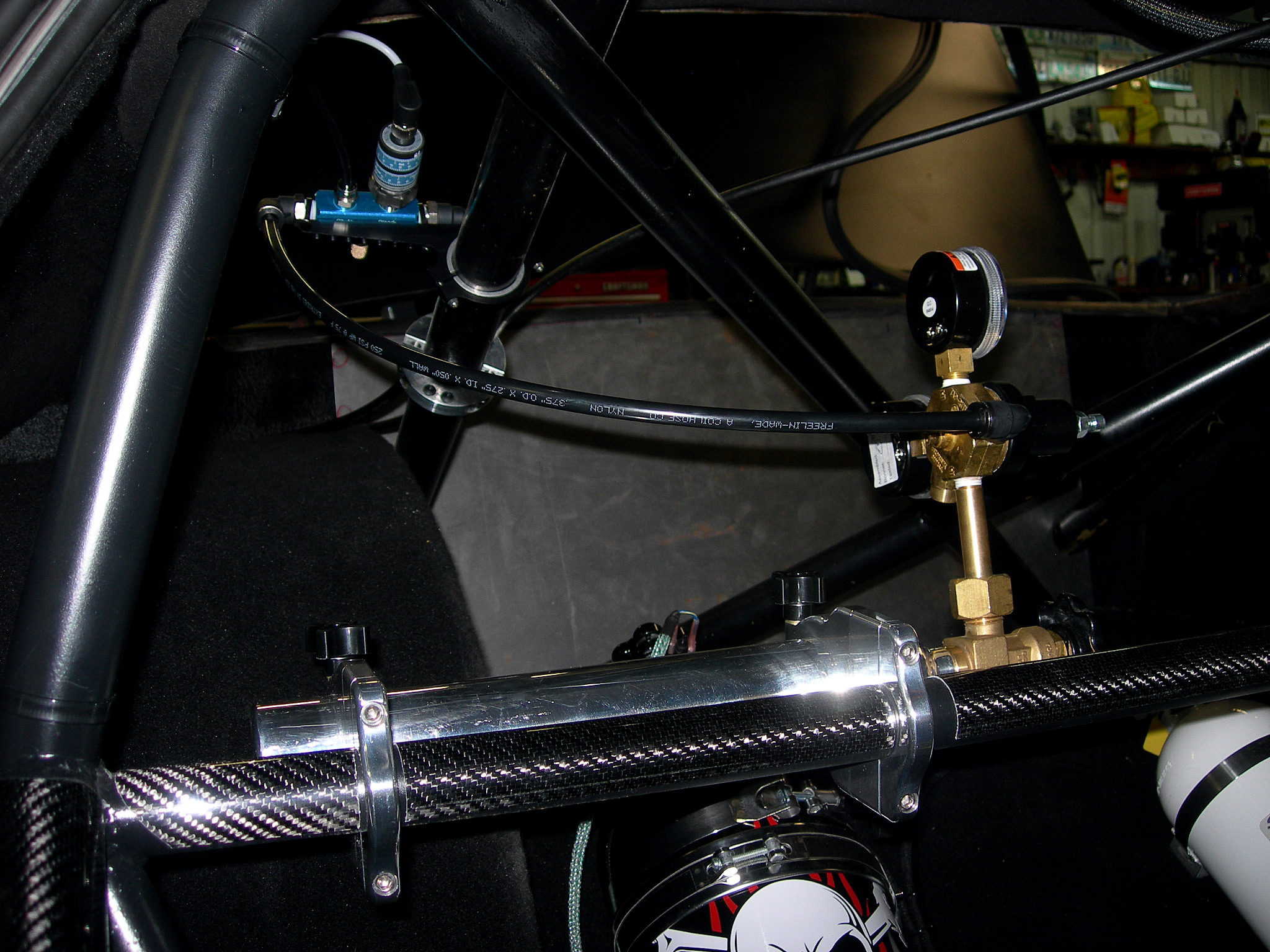

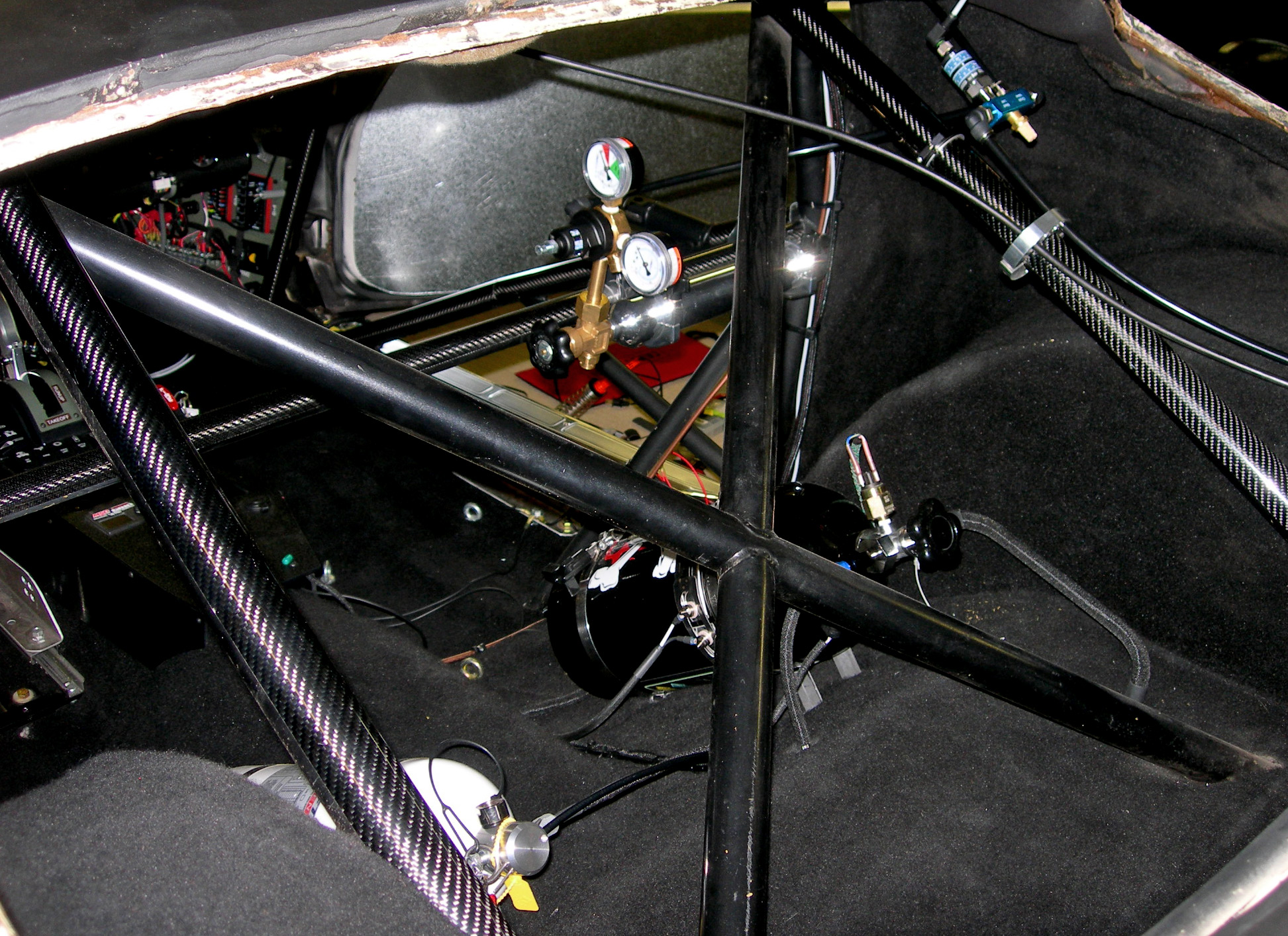

CO2 tank and lines - behind passenger seat area.
|

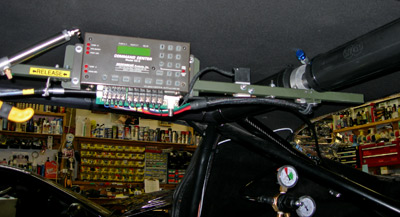

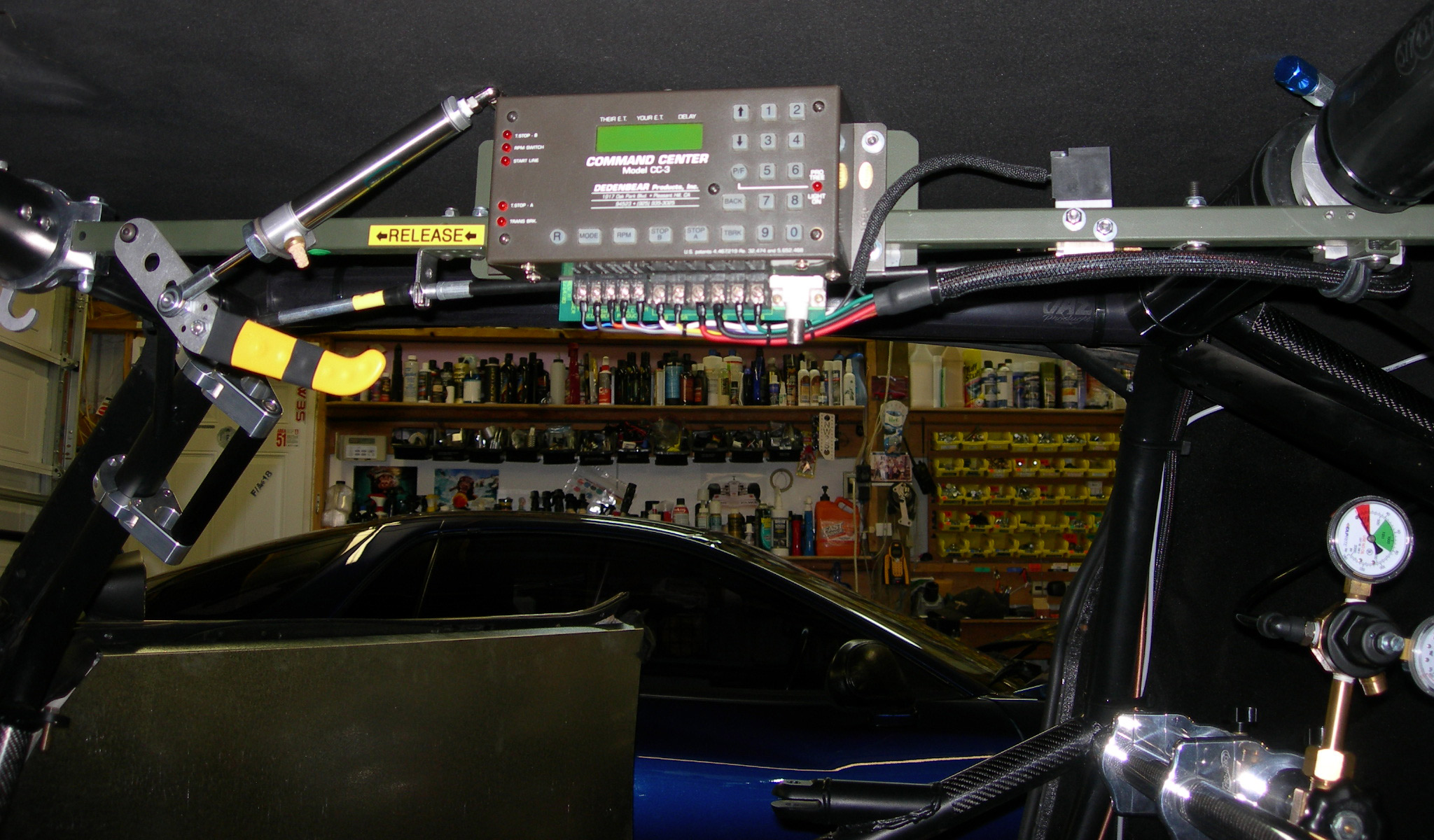

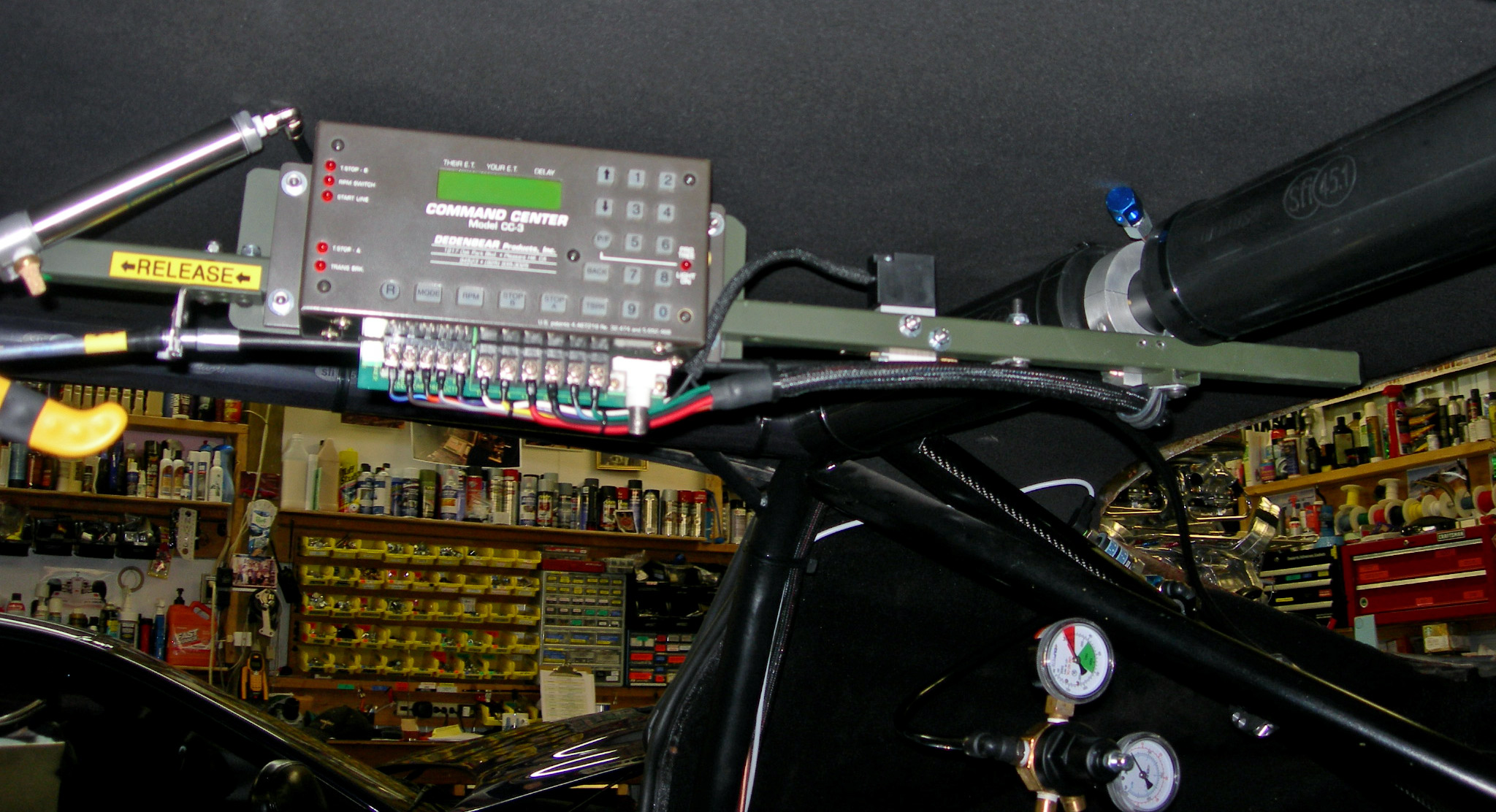

CC3 Command and delay box
|
|

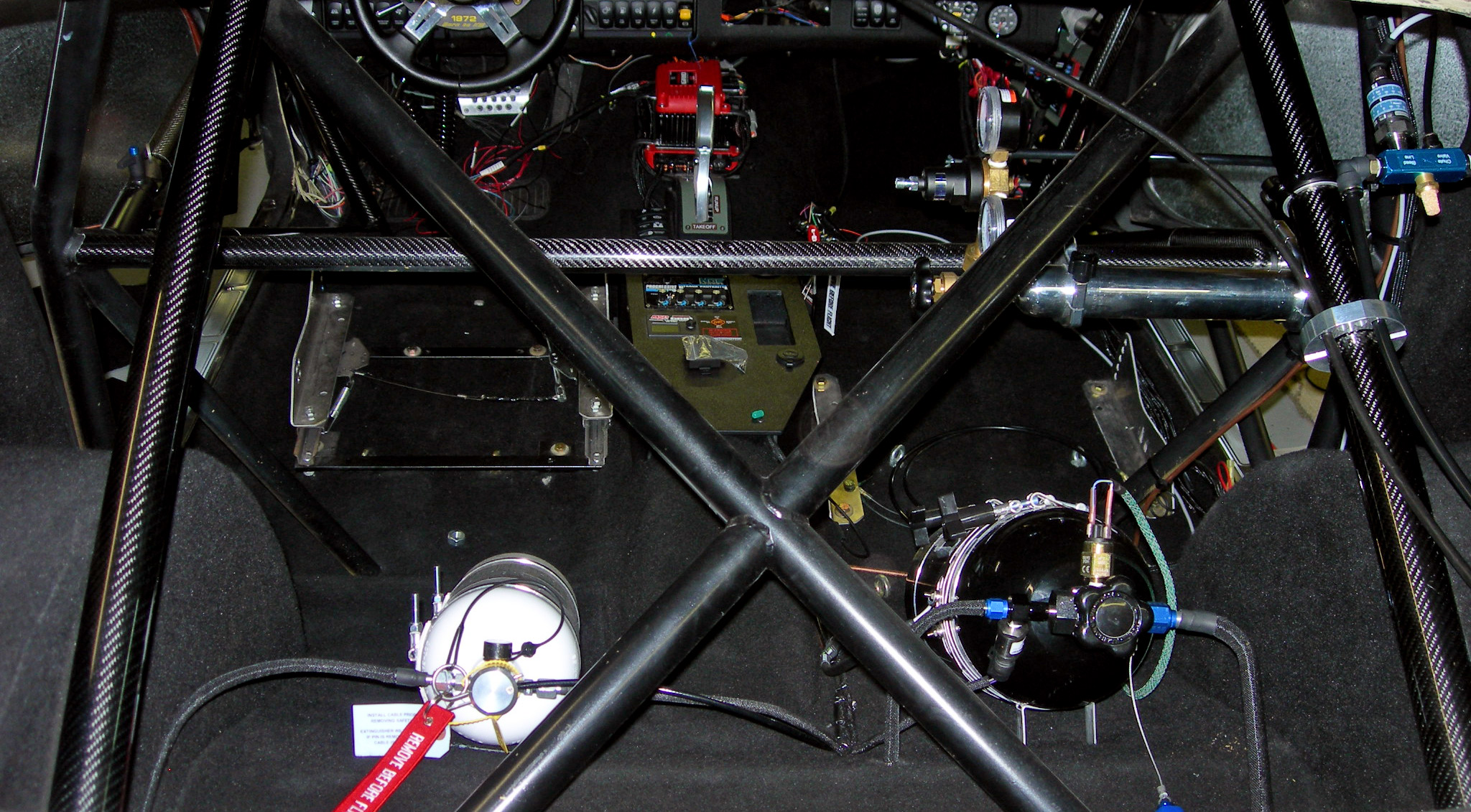

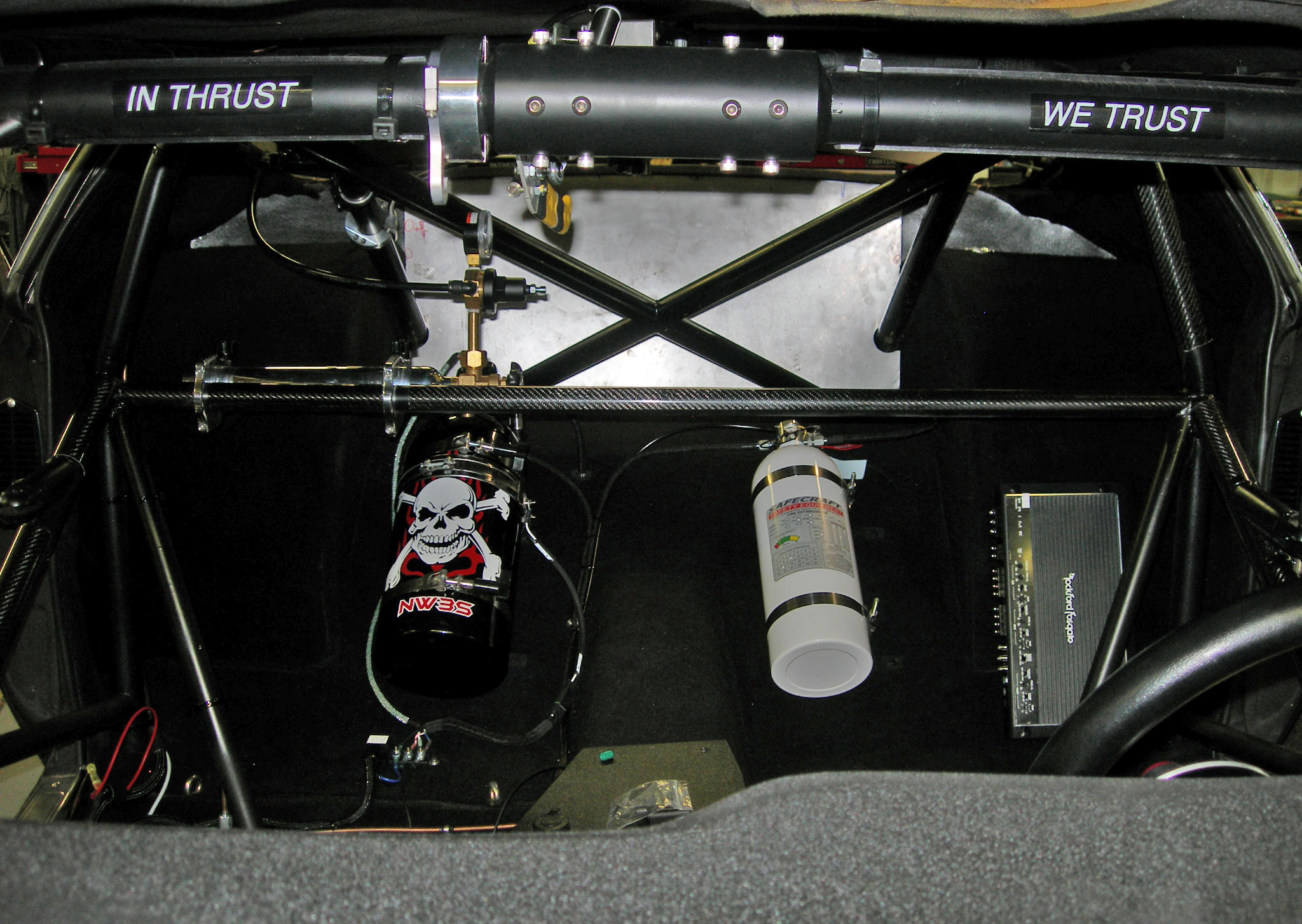

View from back window
|

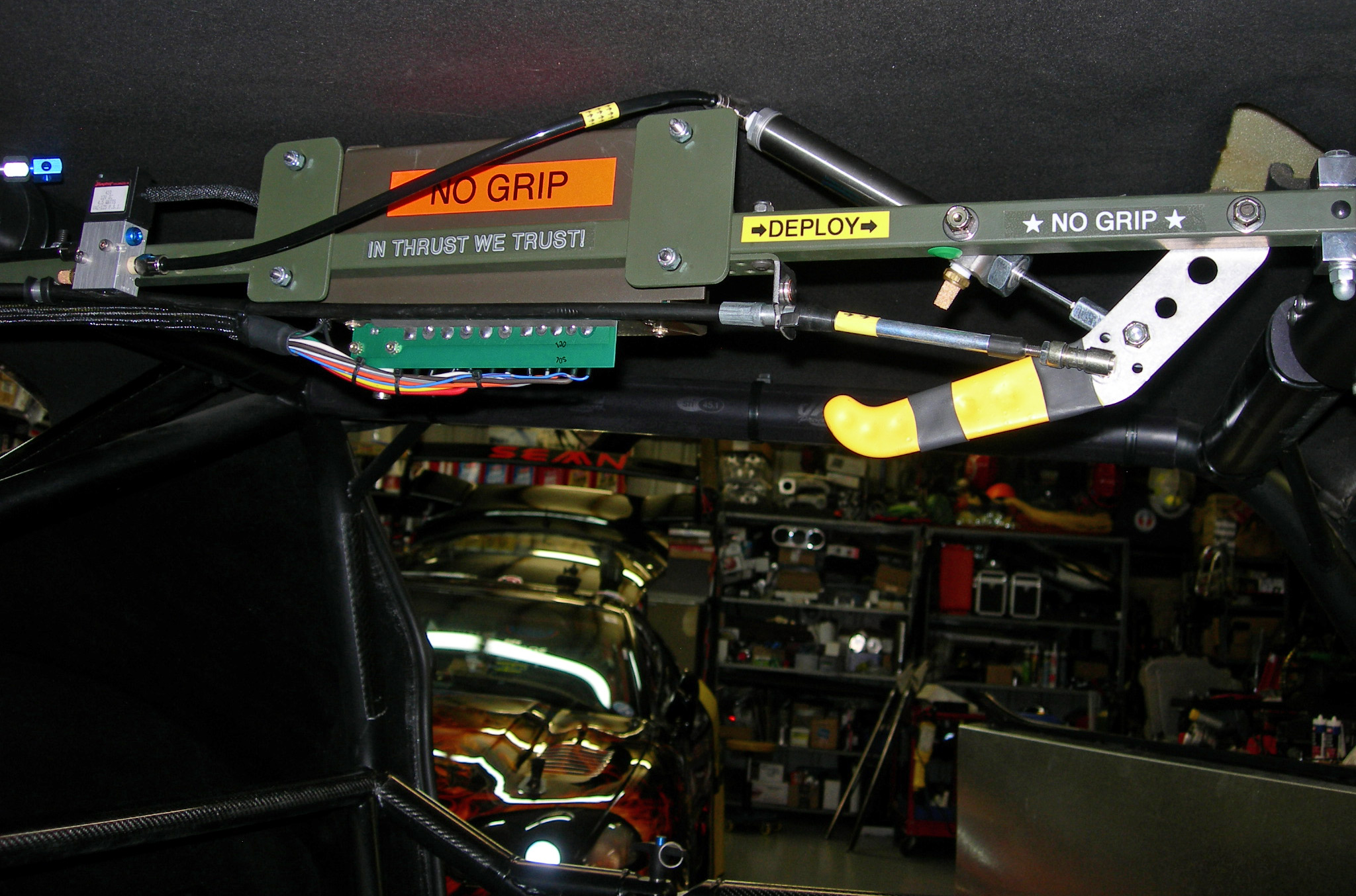

Passenger side view - topside
|
Rear view downward
|

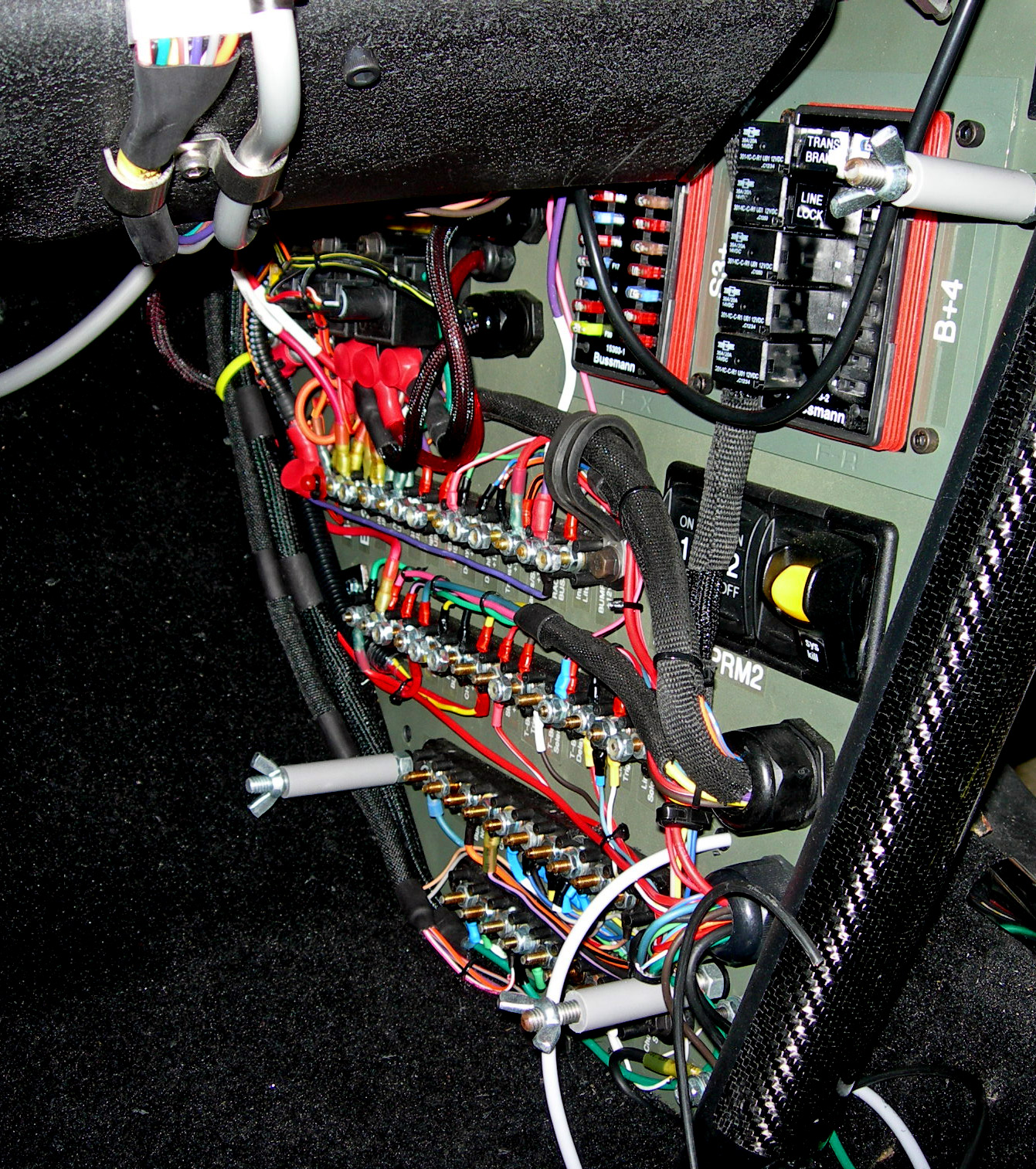

Main Electrical panel getting finished up.
Clear Lexan Cover is off
|

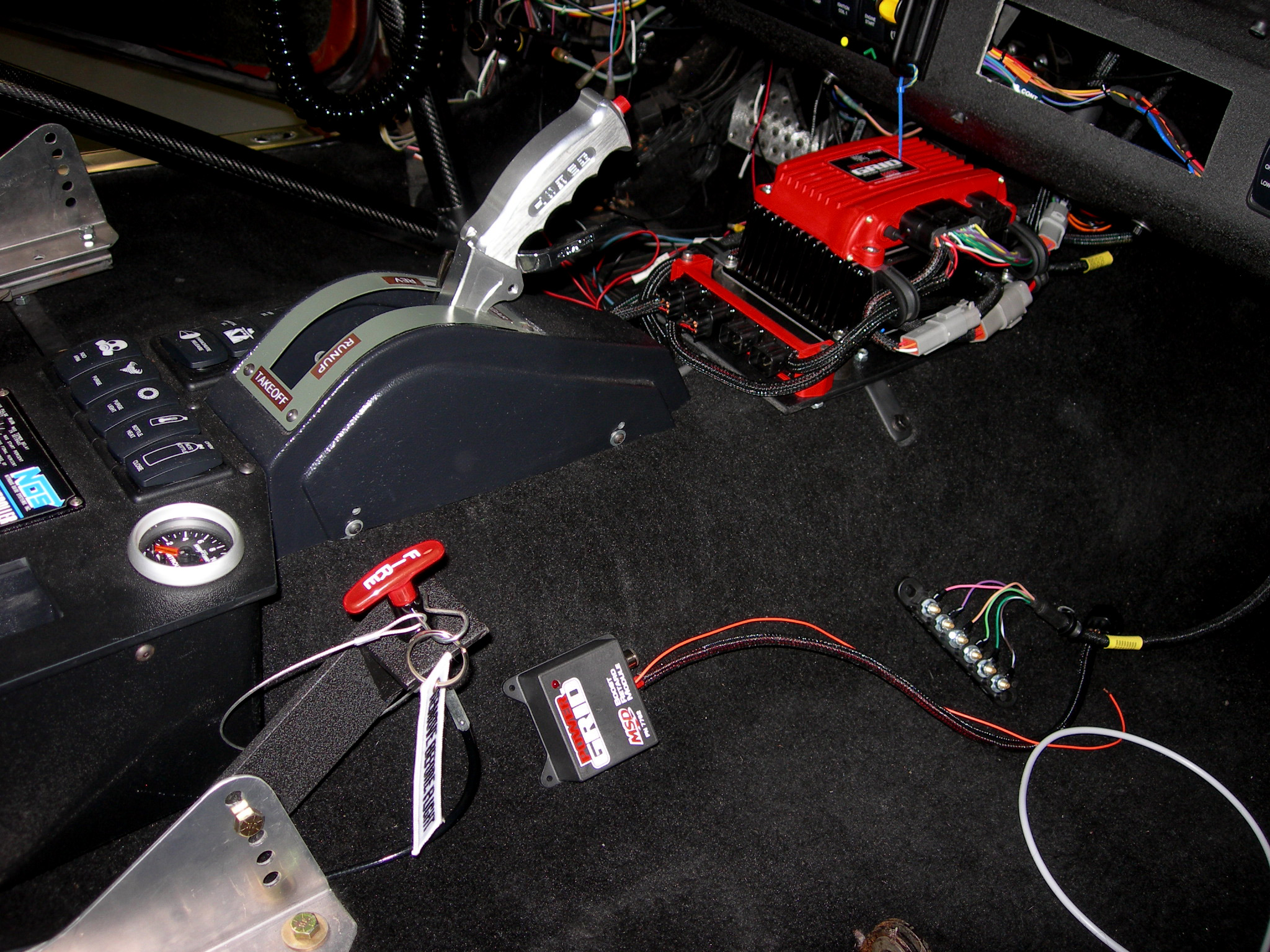

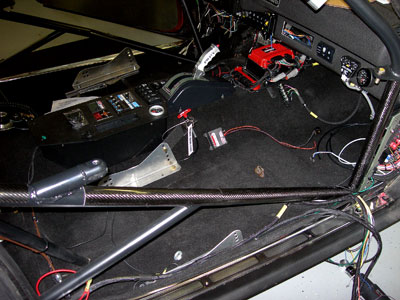

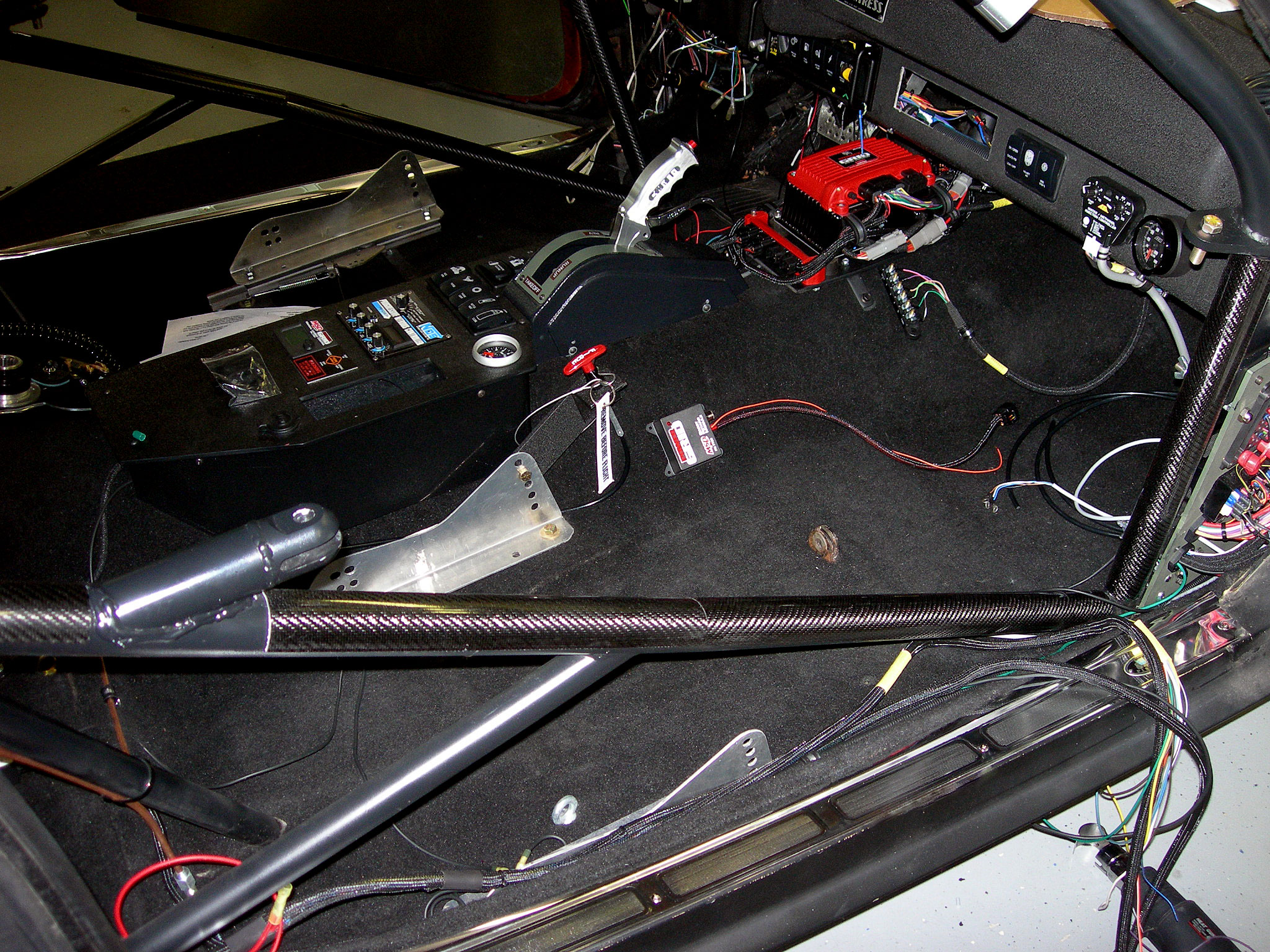

Passenger side, MSD installed, finishing up a few things.
|
View from outside front windshield
|

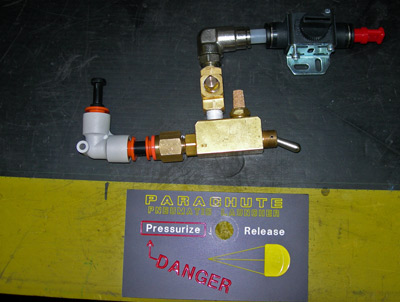

Parachute CO2 launch safety switch assembly
|

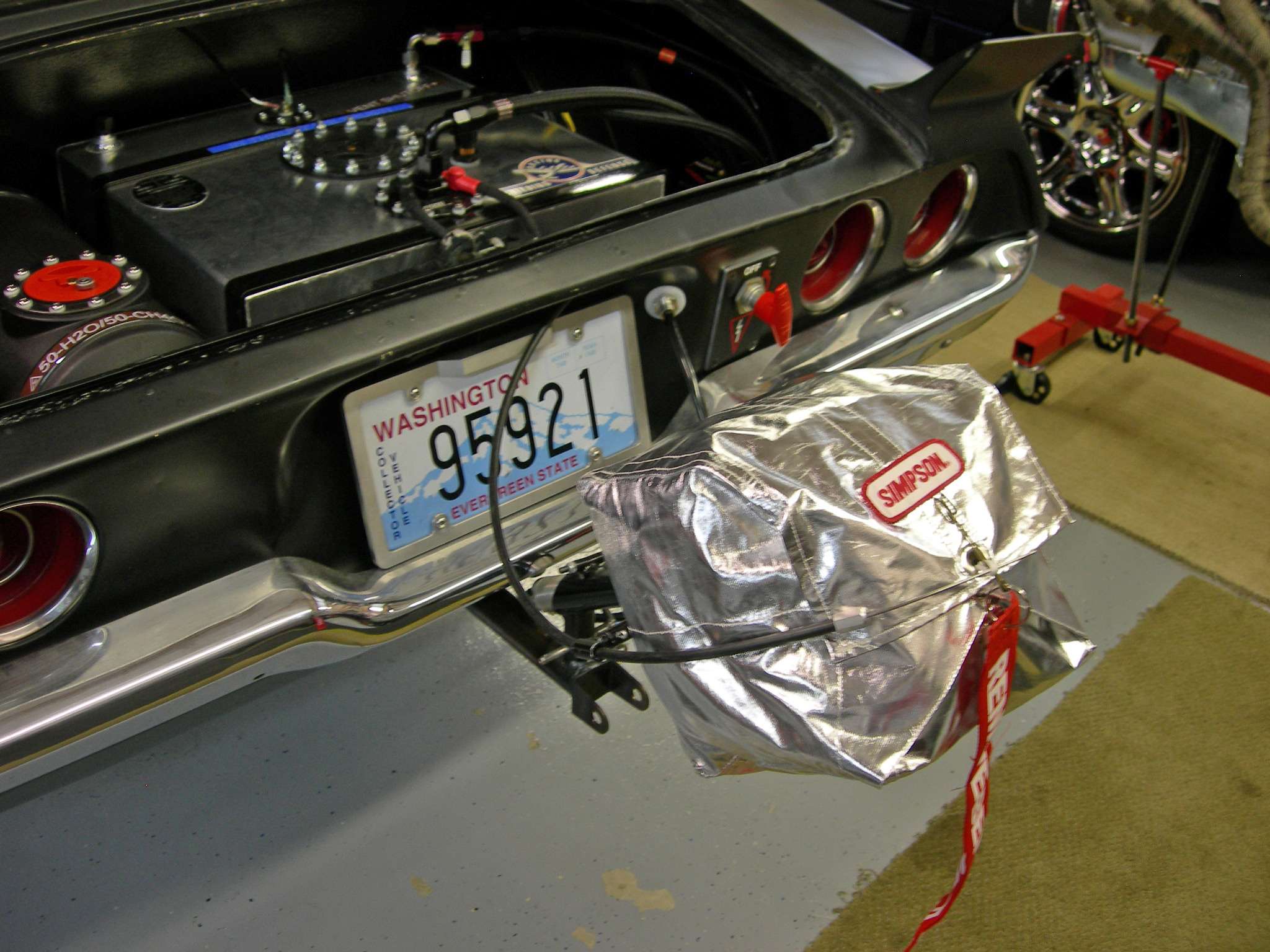

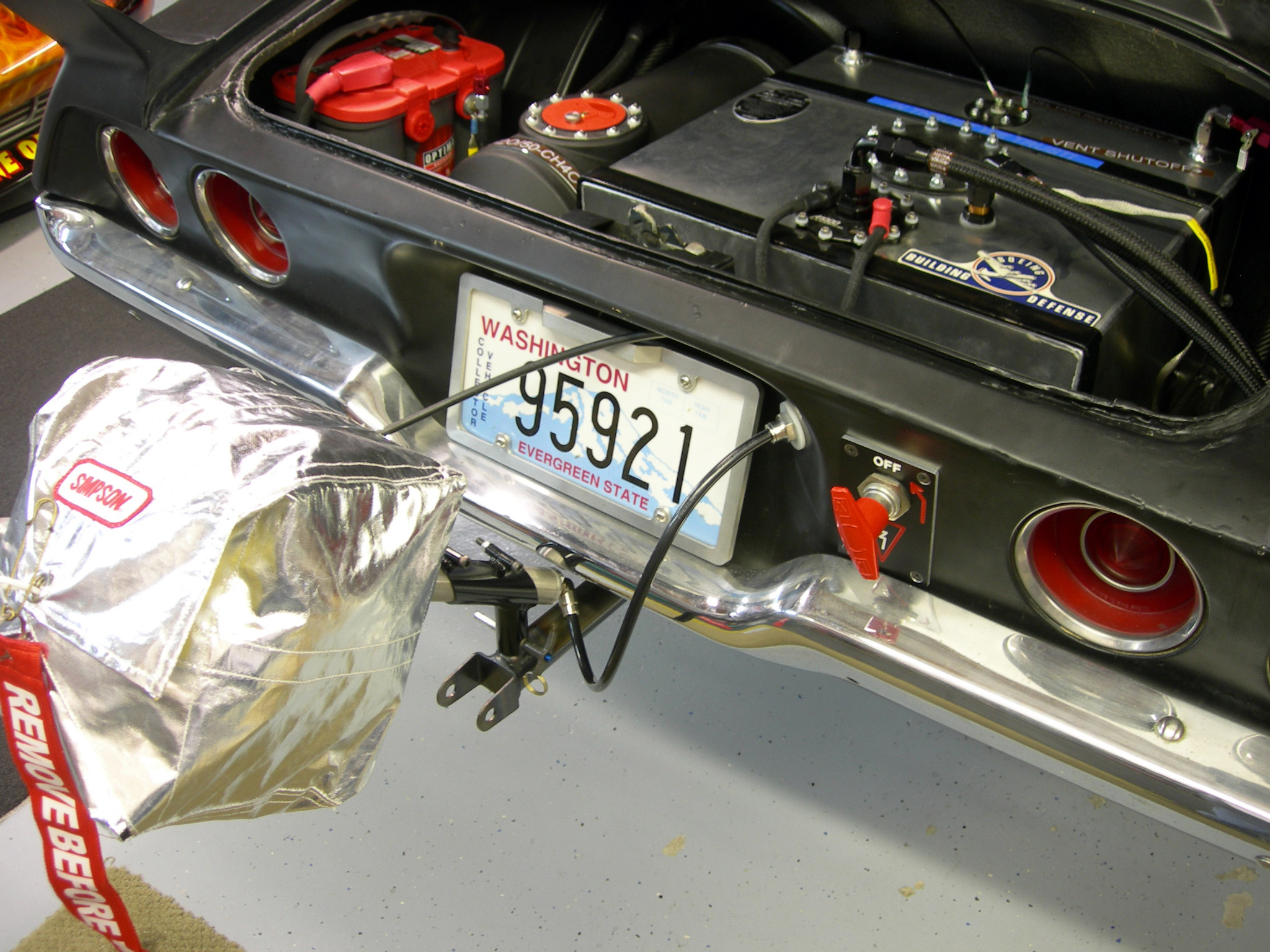

Parachute mount finished, launch lines all finished, release cable finished.
|
|

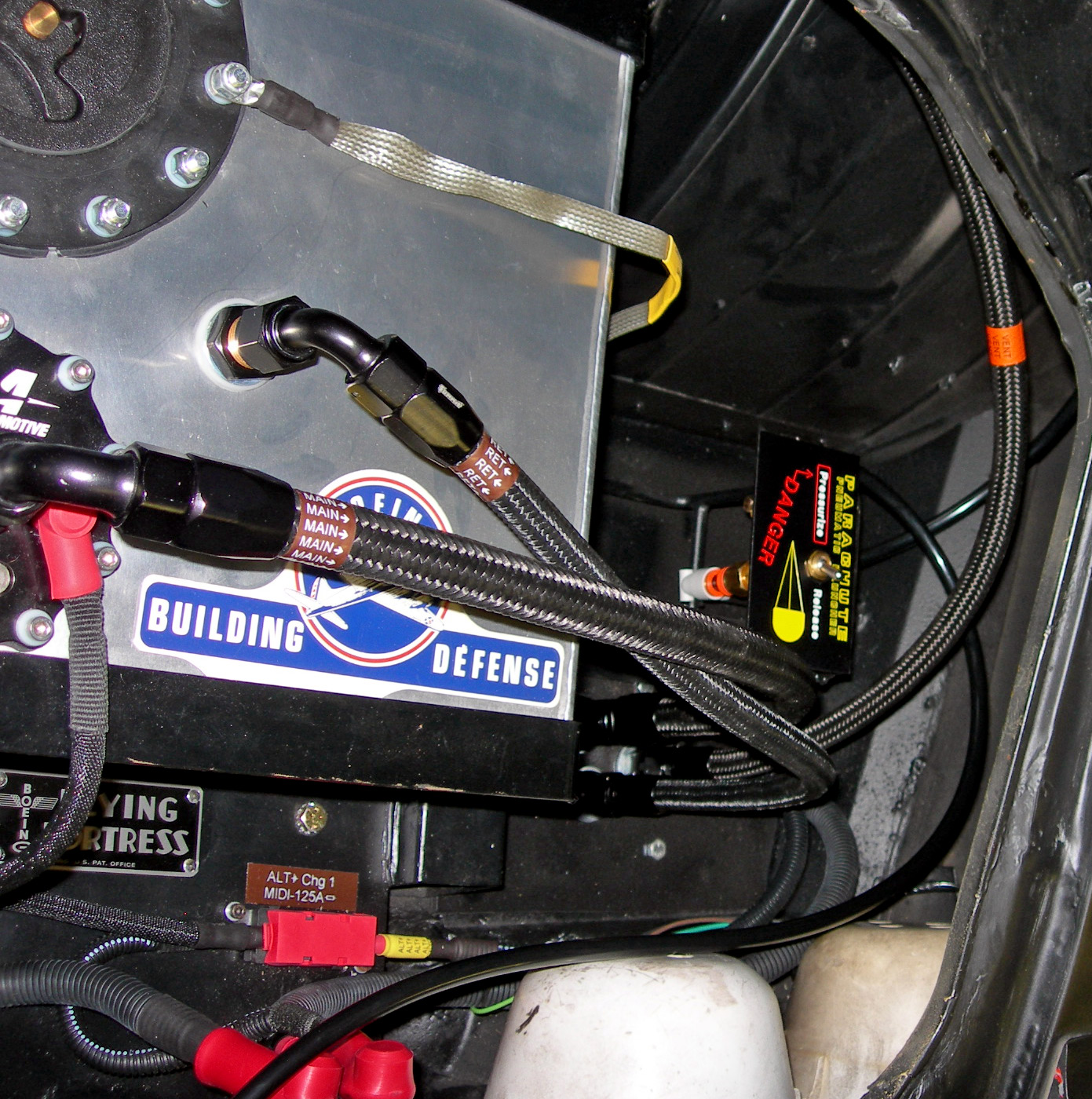

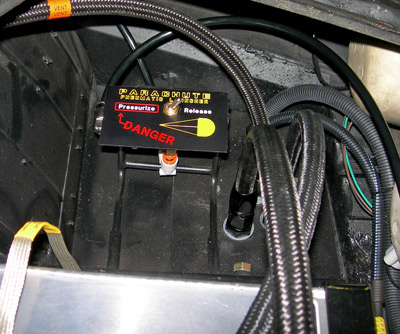

Parachute CO2 switch installed in trunk
|
Parachute CO2 launcher control
|
|
|
|
|
|
|
